Product Details:
|
Properties: | Injection & Puncture Instrument | Material: | 304ssl |
---|---|---|---|
Instrument Classification: | Class III | Product Model: | Y Positive Pressure Type |
Specification 1: | 22G*0.75IN | Specification 2: | 0.9*19mm |
Flow Rate: | 33ml/min | Clinical Applications: | Routine Infusion For Adults |
Color: | Blue | Shelf Life: | 5 Years |
High Light: | 22g blue iv cannula,y type Disposable IV Cannula,Disposable IV Cannula Positive Pressure |

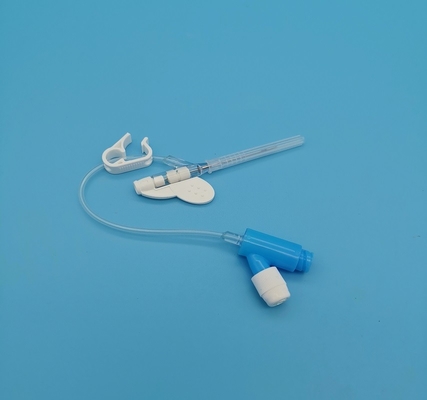

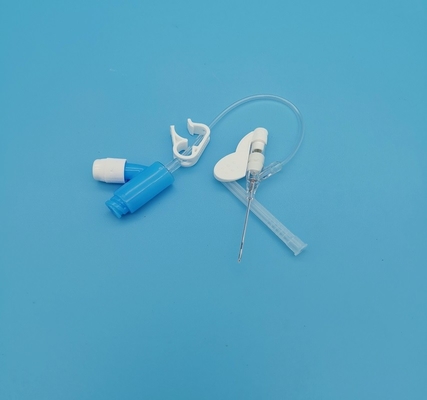

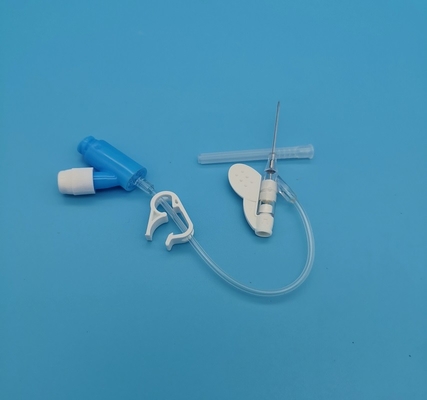

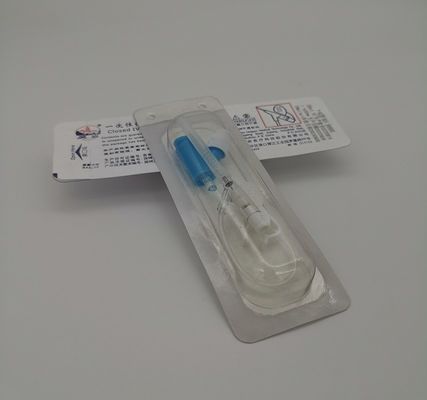

Product Name :Disposable Iv Cannula
Product Registration Certificate No.: National Machinery Note Approval 20153141737
The Y Type disposable intravenous indwelling needle is divided into two types, Y-B and Y-BZ.
Color-coded casing cap allows for easier identification of catheter size
Translucent catheter hub and flashback chamber allows for easy detection of blood flashback at vein insertion
Precision finished FEP catheter assures stable flow and eliminates catheter tip kink during venipucture
Can be connected to syringe by removing filter cap to expose Luer taper end
Use of hydrophobic membrane filter eliminates blood leakage
Close and smooth contact between catheter tip and inner needle enables safe and smooth venepuncture
Type | Product Specifications | Flow Rate | Clinical Applications | Color | |
Y-B(Y type)
|
26G*0.63IN | 0.6*16mm | 10ml/min | Neonates and fine vessels | Purple |
26G*0.75IN | 0.6*19mm | ||||
24G*0.75IN | 0.7*19mm | 19ml/min | Pediatrics/Neonatal Infusion | Yellow | |
22G*0.75IN | 0.9*19mm | 33ml/min | Routine infusion for adults | Blue | |
22G*1.00IN | 0.9*25mm | ||||
20G*1.16IN | 1.1*30mm | 50ml/min | Emergency infusion/blood transfusion | Pink | |
18G*1.16IN | 1.3*30mm | 70ml/min | Emergency Surgery | Green |
Positive pressure connector realizes needle-free connection to avoid occupational risk for medical staff. Positive pressure function can avoid blood backflow, prevent blockage and ensure safe retention
Operation method(For reference only)
1. Remove the protective sleeve and puncture the vessel according to the aseptic operation specification, with a recommended puncture angle of 15° to 30°. Successful puncture is indicated after blood is seen back at the needle seat. Then pull out the syringe and leave the catheter in the vessel.
2. Connect the cone tip of the infusion set with the tube body and fix the tube body to the body with medical tape, then infuse.
3. When the infusion is finished, if it is to be left in the body for another infusion, some anti-coagulant should be injected into the catheter line and the mouth of the tube body should be tightly covered with a protective cap, and the next infusion should be carried out again according to step 2 by removing the protective cap.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: Where is your factory located? How can I visit there?
A: Our factory is in Wuzhong District, Suzhou City, Jiangsu Province, and all our customers, both domestic and foreign, are warmly welcome to visit our factory
Q: Are you a factory or a trading company?
A: We are a large factory integrating R&D, production and sales.
Q: When can I get the price?
A: Normally, we quote within 24 hours after we receive your inquiry.
Q: Can you do OEM?
A: Yes, we do OEM, ODM and R&D. We can process products according to the different needs of our customers.
Q: What is the delivery time?
A: According to the order quantity, it needs to be negotiated.
Q:If I want to order a small quantity, can you do it?
A: If you need products that we have in stock, that would be great and you can choose goods that are in stock.We can put your order together with our other customers' orders for production. But this will require some waiting time.
Q:How will you track my order?
A:When the goods start production, we will take photos of the goods and send them to you, if you find any production,defects, please contact us to correct it. Throughout the production process, we will keep in touch with you via email or instantinformation and you can get the latest news about your order. After the goods are completed, we will take pictures of the goods and pack
to you before shipping.
Q: How can I get a sample?
A: Please pay the sample cost and courier fee before we receive your first order. We will return the sample cost to you on your first order.
Q: Can you brand the products with our brand?
A: Some products can. We can put your Logo on the products and packaging if you can meet our MOQ.
Q: Can you make products in our colors?
A: Yes, the color of the product can be customized if you can meet our MOQ.
Q: How do you guarantee the quality of your products?
A:
1) Strict testing during the production process.
2) Strict sampling inspection of products before shipment, and make sure the products are well packed.
