Product Details:
|
| Properties: | Injection & Puncture Instrument | Material: | 304ssl |
|---|---|---|---|
| Instrument Classification: | Class III | Product Model: | Y-B Type |
| Specification 1: | 26G*0.63IN | Specification 2: | 0.6*16mm |
| Flow Rate: | 10ml/min | Clinical Applications: | Tiny Blood Vessels |
| Color: | Purple | Shelf Life: | 5 Years |
| High Light: | 26g Disposable IV Cannula,tiny Disposable IV Cannula,purple y type iv cannula |
||

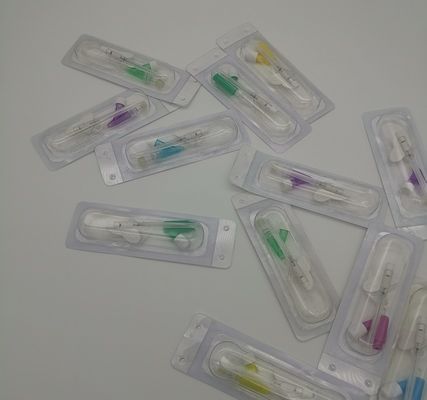

Product Name :Disposable Iv Cannula
Registered Trademark: Lingan Brand
Product Registration Certificate No.: National Machinery Note Approval 20153141737
Executive Standard:YZB/State 3157-2010 Disposable intravenous indwelling needle
Product features:
1. multi-bevel needle tip polishing technology to enhance sharpness and puncture success rate.
Catheter specific material, bending quickly back to its original shape, floating in the blood vessels, reducing the stimulation of the blood vessels, reducing the incidence of phlebitis and increasing the comfort of retention.
2.Y type/straight type design
Meet the needs of different infusion treatment ( Y type can be used as a tee ) convenient and cost-effective
The butterfly type disposable intravenous indwelling needle is divided into two types, Y-A and Y-AZ.
Please see the following table for details:
| Type | Product Specifications | Flow Rate | Clinical Applications | Color | |
|
Y-B(Y type)
|
26G*0.63IN | 0.6*16mm | 10ml/min | Neonates and fine vessels | Purple |
| 26G*0.75IN | 0.6*19mm | ||||
| 24G*0.75IN | 0.7*19mm | 19ml/min | Pediatrics/Neonatal Infusion | Yellow | |
| 22G*0.75IN | 0.9*19mm | 33ml/min | Routine infusion for adults |
Blue |
|
| 22G*1.00IN | 0.9*25mm | ||||
| 20G*1.16IN | 1.1*30mm | 50ml/min | Emergency infusion/blood transfusion | Pink | |
| 18G*1.16IN | 1.3*30mm | 70ml/min | Emergency Surgery | Green | |
Perfect plasticity of the catheter tip, precise and stable distance, can improve the success rate of puncture and safe placement
Airtight integrated design to avoid blood contamination
Instructions for use:
1. medical personnel should check the package strictly according to aseptic operation, and remove the product if it is well sealed and not broken;
2. tighten the heparin cap (if any), remove the protective cap and connect directly to the outer luer connector to drain the gas;
3. medical personnel rotate and loosen the needle tip protection sleeve, pinch the catheter holder with one hand, turn the needle handle slightly from side to side with the other hand, and then reset it to prevent needle adhesion;
4. hold the needle holder flap so that the syringe blade is facing upward at an angle of 15-30 degrees, puncture the vein straight and feed the needle slowly;
5. carefully observe the return of blood at the lateral hole of the needle core, depress the angle after seeing the return of blood, continue to enter the needle for 2 mm, hold the catheter holder in the left hand and withdraw the steel core about 5 mm with the right hand;
6. Hold the needle holder and feed the steel needle core and catheter together all into the vessel, and withdraw the steel needle core. Do not re-insert the steel needle into the catheter to avoid damage to the catheter. Put the withdrawn steel needle into the special apparatus;
7. Adjust the infusion flow rate by applying a transparent dressing;
8. After the indwelling infusion is finished, the tube should be sealed.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
