Product Details:
|

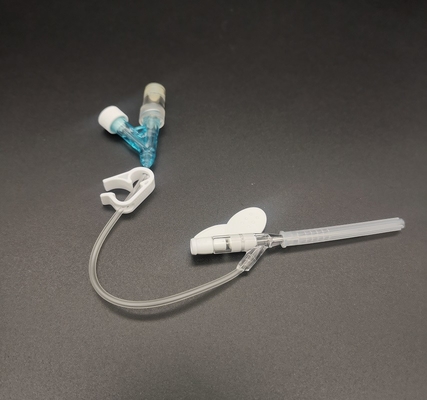

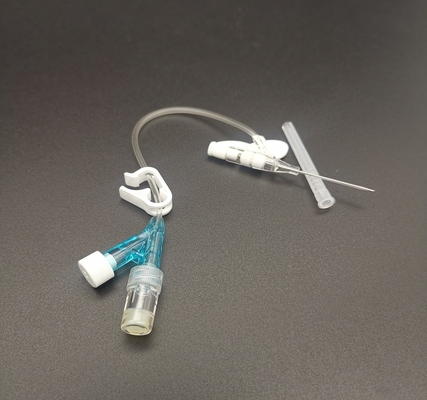

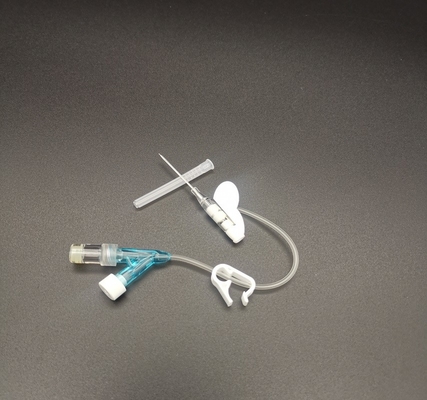

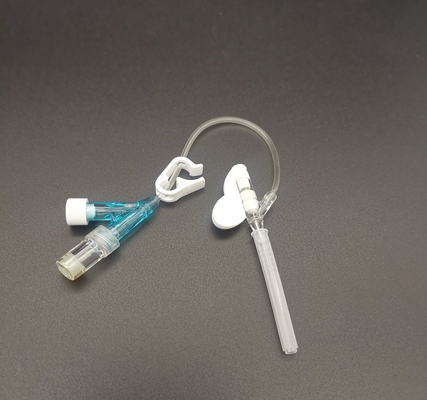

Properties: | Injection & Puncture Instrument | Material: | 304ssl |
---|---|---|---|
Instrument Classification: | Class III | Product Model: | Y-B Type |
Specification 1: | 22G*0.75IN | Specification 2: | 0.9*19mm |
Flow Rate: | 33ml/min | Clinical Applications: | Routine Infusion For Adults |
Color: | Blue | Shelf Life: | 5 Years |
Highlight: | Blue Disposable IV Cannula,Adults Disposable IV Cannula,Routine Infusion 22g catheter iv |
Intravenous indwelling needle infusion is a method of infusion using a specialized intravenous indwelling needle. It consists of a stainless steel needle core, a soft outer cannula, a needle handle and a heparin cap. When puncturing, the outer cannula and the needle core are pierced together into the blood vessel, and when the cannula is fed into the blood vessel, the needle core is withdrawn and only the soft outer cannula is left in the blood vessel for infusion, thus protecting the baby's blood vessels.
Operation method(For reference only)
1. Remove the protective sleeve and puncture the vessel according to the aseptic operation specification, with a recommended puncture angle of 15° to 30°. Successful puncture is indicated after blood is seen back at the needle seat. Then pull out the syringe and leave the catheter in the vessel.
2. Connect the cone tip of the infusion set with the tube body and fix the tube body to the body with medical tape, then infuse.

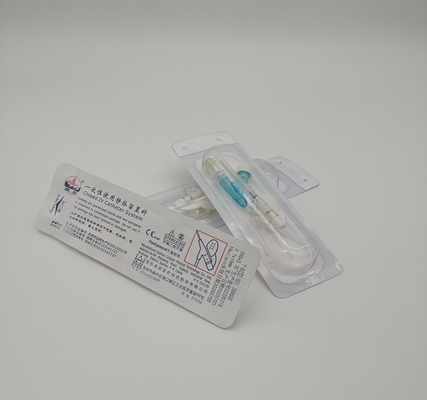

Y type Packaging Details
IV catheter: 200 pcs/ctn,50pcs/box
Type | Product Specifications | Flow Rate | Clinical Applications | Color | |
Y-B(Y type)
|
26G*0.63IN | 0.6*16mm | 10ml/min | Neonates and fine vessels | Purple |
26G*0.75IN | 0.6*19mm | ||||
24G*0.75IN | 0.7*19mm | 19ml/min | Pediatrics/Neonatal Infusion | Yellow | |
22G*0.75IN | 0.9*19mm | 33ml/min | Routine infusion for adults | Blue | |
22G*1.00IN | 0.9*25mm | ||||
20G*1.16IN | 1.1*30mm | 50ml/min | Emergency infusion/blood transfusion | Pink | |
18G*1.16IN | 1.3*30mm | 70ml/min | Emergency Surgery | Green |
Product Details
1. Small clip design
Patients: Reduce blood reflux Reduce blockage of tubes, improve the effectiveness of sealing tubes and ensure the retention time.
Nurse: prevent blood spillage when changing infusion connector or infusion.
2.Y type/straight type design
Meet the needs of different infusion treatment ( Y type can be used as a tee ) convenient and cost-effective.
3.Translucent, transparent catheter and needle holder design for easy observation of blood return.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: Where is your factory located? How can I visit there?
A: Our factory is in Wuzhong District, Suzhou City, Jiangsu Province, and all our customers, both domestic and foreign, are warmly welcome to visit our factory
Q: Are you a factory or a trading company?
A: We are a large factory integrating R&D, production and sales.
Q: When can I get the price?
A: Normally, we quote within 24 hours after we receive your inquiry.
Q: Can you do OEM?
A: Yes, we do OEM, ODM and R&D. We can process products according to the different needs of our customers.
Q: What is the delivery time?
A: According to the order quantity, it needs to be negotiated.
Q:If I want to order a small quantity, can you do it?
A: If you need products that we have in stock, that would be great and you can choose goods that are in stock.We can put your order together with our other customers' orders for production. But this will require some waiting time.
Q:How will you track my order?
A:When the goods start production, we will take photos of the goods and send them to you, if you find any production,defects, please contact us to correct it. Throughout the production process, we will keep in touch with you via email or instantinformation and you can get the latest news about your order. After the goods are completed, we will take pictures of the goods and pack
to you before shipping.
Q: How can I get a sample?
A: Please pay the sample cost and courier fee before we receive your first order. We will return the sample cost to you on your first order.
Q: Can you brand the products with our brand?
A: Some products can. We can put your Logo on the products and packaging if you can meet our MOQ.
Q: Can you make products in our colors?
A: Yes, the color of the product can be customized if you can meet our MOQ.
Q: How do you guarantee the quality of your products?
A:
1) Strict testing during the production process.
2) Strict sampling inspection of products before shipment, and make sure the products are well packed.
