Product Details:
|
Shelf Life: | 3 Year | Principle: | Silicon – Capsule |
---|---|---|---|
Model Number: | CBI Type | Size: | 60ml 100ml 200ml |
Packaging: | 60 Pieces/box | Properties: | Medical Materials & Accessories |
Disinfecting Type: | EOS | Instrument Classification: | Class III |
High Light: | CBI disposable infusion pumps,Postoperative disposable infusion pumps,CBI disposable infusion pumps Postoperative |
Please see the table for details
Model | Specification | Package | Nominal flow rate |
CBI | 60ml 100ml 200ml 300ml | 10pcs/box 80pcs/box | 2ml/h |
CBI+PCA | 60ml 100ml 200ml 300ml | 10pcs/box 80pcs/box | 0.5ml/15min |
Main structure and performance

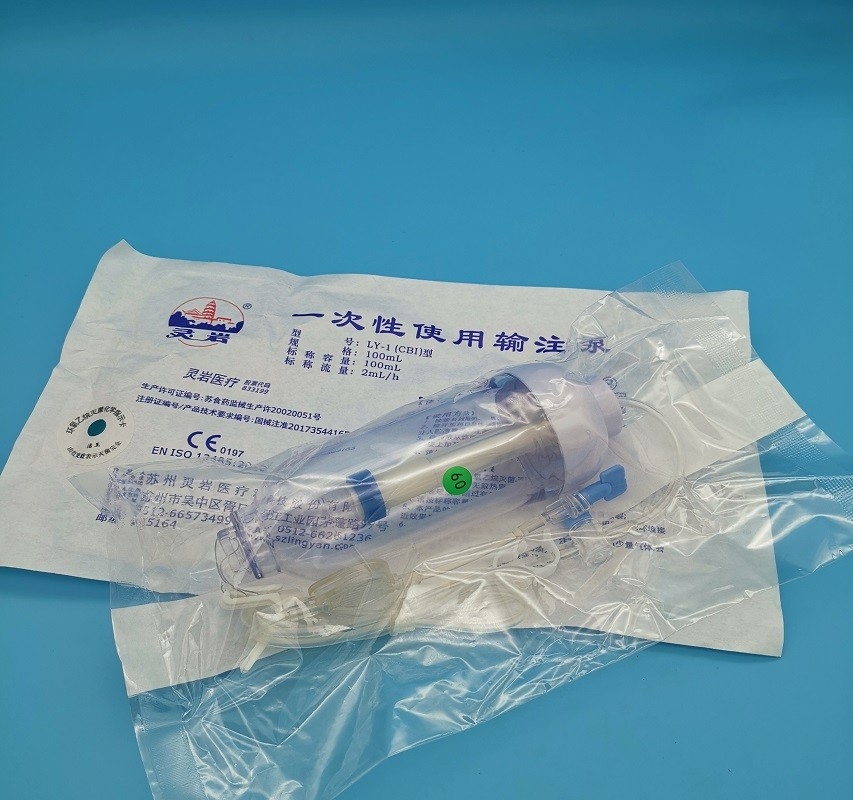

LY-1(CBI) type: made of pump body, fixing ring, liquid storage capsule, conduit, dosing device, liquid filter, flow limiting device and joint.
This product is powered by the elasticity of the medical silicone rubber capsule and capillary controlled flow to achieve a micro continuous infusion (CBI) of medication, coupled with a patient self-control (PCA) device to provide regular, quantitative and additional pain relief medication.
Product functional parameters
1. Nominal capacity: 60mL, 100mL, 200mL, 300mL
2. Nominal flow rate: 2mL/h
3. patient self-control (PCA) dose/interval time: 0.5mL/15min
4. After the liquid flows out from the terminal connector, clamp the pipeline, screw on the dosing port guard cap and terminal guard cap, and wait for use.
Intravenous infusion is a common mode of drug delivery in clinical treatment. The speed of intravenous infusion varies according to the nature of the drug and the physical condition of the patient. Too fast or too slow infusion is difficult to achieve the expected therapeutic effect, and even affects the safety of care. At present, the common infusion set widely used in the clinic mainly relies on the level difference pressure to input liquid to the receptor, and relies on the nursing staff to control the infusion speed by visual observation and hand-adjusted wheel clamps. The lack of functions such as blockage alarm, bubble alarm and liquid delivery alarm of ordinary infusion sets increases the burden of clinical care; moreover, the liquid bottle is easy to import outside air to contaminate the liquid. The infusion pump is an instrument that can accurately control the number of infusion drops or infusion flow rate to ensure that the drug can enter the patient's body at an even speed and in an accurate amount and safely. It helps to reduce the intensity of clinical nursing work and improve the accuracy, safety and quality of infusion.
Operation
1,Prepare the medicine solution in the treatment room according to the doctor's order, check the quality, deterioration, discoloration, turbidity, looseness of the bottle and expiration date, saw open the bottle after it is correct, disinfect the Andover swab, draw the medicine solution, add the medicine and mix it according to the principle of aseptic operation. Indicate on the bottle label the name, bed number, name of the added drug and dosage, ask the second person to check, and assist the patient to take a comfortable lying position.
2,Adjust the infusion speed and scheduled infusion volume according to the doctor's instructions (according to the 'Select' adjustment on the infusion pump panel).
3,Tie the tourniquet, select the blood vessel correctly, loosen the tourniquet, disinfect the skin with Andover, let it dry, prepare the infusion patch, tie the tourniquet, disinfect the skin with Andover again, perform the puncture and fix it correctly (same as infusion operation procedure).
4. Record the drug, liquid volume and infusion speed in the infusion pump
